Inland Marine Equipment Hire

Unifloat Pontoon & Inland Marine Equipment Hire

Flexible equipment for work on inland water. Equipment for potential use on rivers, canals and reservoirs, including bridge works and working-platform or access applications, subject to project-specific suitability assessment.

Inland marine equipment in action

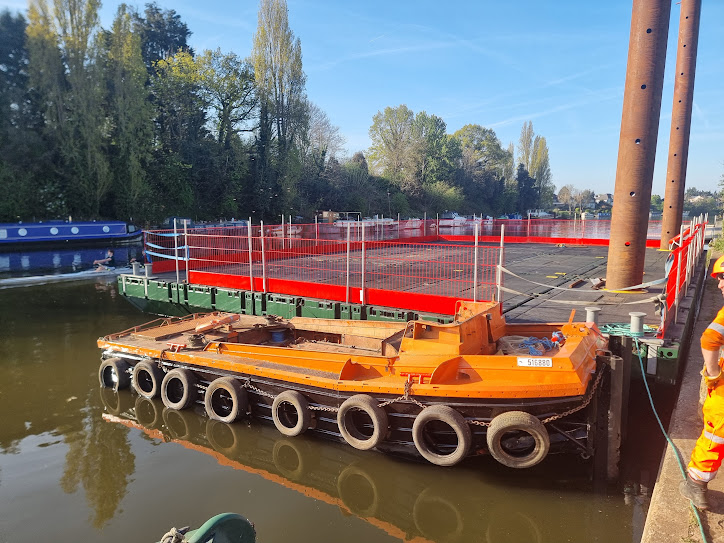

Tug alongside a pontoon working platform

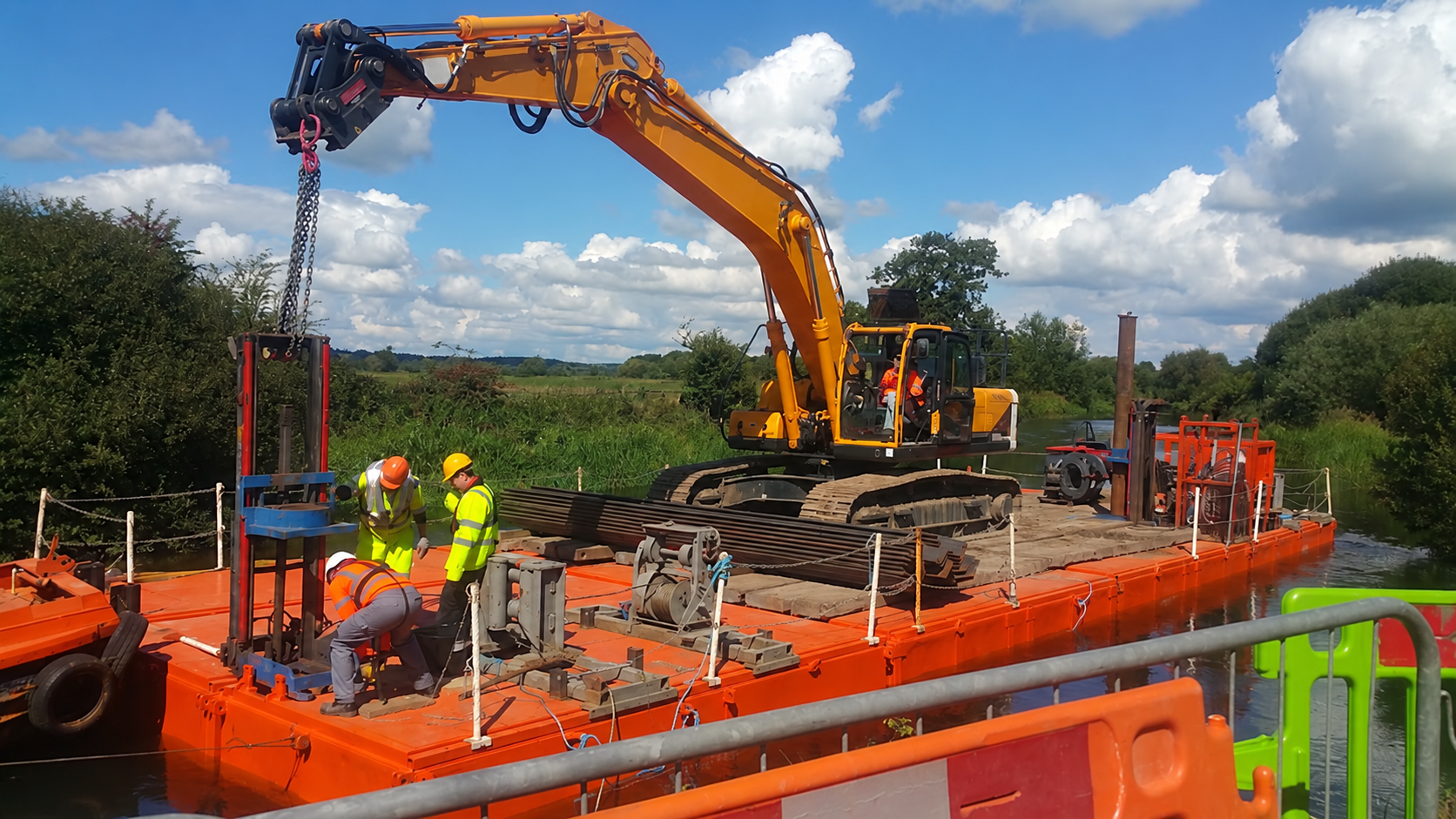

Excavator working from a modular pontoon

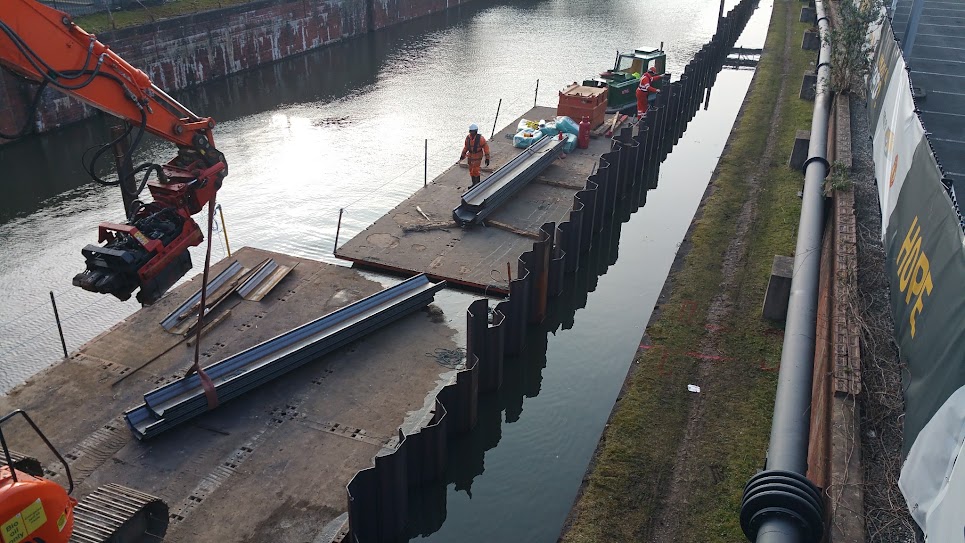

Canal-side sheet piling from a floating platform

Modular inventory

NATO Unifloat Sections

48 NATO Unifloat sections comprising Type E end and Type M middle sections, joined to form multiple configurations including flat decks for tracked excavators, cabins or storage. Each section has a stated load of 2,500 kg at 250 mm freeboard. Manual spud legs can be used on several configurations.

See the NATO Pontoons brochure (FE02). Configuration advice is available on enquiry.

Check Availability & Request a Hire Quote

Configuration support

Pontoon Accessories

Various pontoon accessories are available. Individual accessory inventory and suitability are confirmed on enquiry.

Specifications and configuration advice are available on enquiry.

Check Availability & Request a Hire Quote

Unifloat pontoon hire: fleet, capacity and quote information

Floating equipment brochures

Download the technical brochures for our floating equipment. Each PDF opens in a new tab.

Excavator and plant working on an orange Link Float pontoon platform on a river (DAACE project photograph from brochure FE01)

FE01 · Revision 1 · 2 pages

Link Float Pontoons

Linkflote system

Twelve Link Float units, three across by four along, forming a larger working platform for plant and marine construction.

Units
12 (3 across × 4 along)
Unit size
5.272 × 2.428 × 1.230 m
Unit self weight
Approx. 4,000 kg
Distributed load
95 kN per unit at 225 mm freeboard
Deck structural limit
20 kN/m²
Nominal platform
7.284 × 21.088 m (153.60 m²)

Nominal platform size excludes connector gaps and ancillary equipment. The deck figure is a structural limit, not floating payload, and summed unit loads are not a plant or excavator rating. Mats, ballast and equipment count as imposed load.

NATO pontoon sections joined into a flat deck afloat on a canal (photograph from brochure FE02)

FE02 · Rev 01 · 2 pages

NATO Pontoons

Sectional floats

Type E end and Type M middle sections that join together to form multiple configurations, including a flat deck for tracked excavators, cabins or storage.

Type E end
4.75 × 2.10 × 0.73 m, 1,250 kg
Type M middle
4.20 × 2.10 × 0.73 m, 1,185 kg
Stated load
2,500 kg per section at 250 mm freeboard
Example layouts
9 sections 13.70 × 6.30 m; 12 sections 13.70 × 8.40 m

Stated section loads are per section. Adding them together does not give a certified excavator payload.

Orange Schottel workboat with tyre fenders moored alongside a pontoon (DAACE project photograph from brochure FE03)

FE03 · Rev 04 · 1 page

Schottel Workboat

Tug and floating plant support

Supports tug and pontoon positioning and movement of floating plant, coordinated with the site marine team.

Builder
Schottel Werft
Hull
Steel
Engine
Deutz diesel
Recorded length
7.45 m
Recorded beam
2.48 m
Loading and stability. Every configuration requires a project-, machine- and duty-specific loading, buoyancy and stability assessment. Uneven loading, track reactions, slewing, outreach, piling forces, trim and edge clearance can govern. Summed section or unit loads are not certified excavator payloads. Buoyancy calculations can be provided.

Arrangements confirmed on enquiry

Buoyancy, loading and configuration calculations can be supplied. Please ask.
