Specialist Excavation, Shafts & Timber Headings

DAACE brings specialist excavation experience to shafts, deep excavations and restricted-access sites.

This experience includes excavating cofferdams, digging deep shafts, installing timber headings and constructing small hand-dig tunnels.

Project requirements are reviewed individually so DAACE can confirm the suitable approach and scope on enquiry.

Shaft sinking and caisson methods

Shafts can be sunk as caissons, with the lining jacked or lowered as the ground is excavated from inside, or built in stages with segmental or panel linings. The method depends on the ground, groundwater, depth and the space available at the surface. At Manningtree Station, lift shafts were sunk by hand excavation and hydraulic jacking within hoarded areas on existing platforms.

Railway lift shafts and live environments

Lift shafts for step-free access and other works beside operational railways need separation between the works and the public, coordinated access and isolations, and a design package that addresses each construction stage. Our team has developed shaft-sinking and excavation methods for railway projects.

Deep excavation and excavation support

Deep excavations and cofferdams are supported in stages using sheets, frames, props, panels or linings, with the support installed and removed in a designed sequence. Groundwater and buoyancy are assessed where shafts and bases sit below the water table.

Timber headings and hand-dug tunnels

Timber headings and small hand-dug tunnels allow short underground connections where open excavation is impractical, such as beneath roads, railways or existing structures. Heading frames and lagging are arranged to suit the ground and the size of the opening.

Restricted-access sites

Restricted access, low headroom and limited laydown space are common on shaft and heading work. Methods, plant and the sequence are chosen around those limits, and residential or confined sites are subject to an assessment of access and equipment.

Specialist excavation, shafts and headings in practice

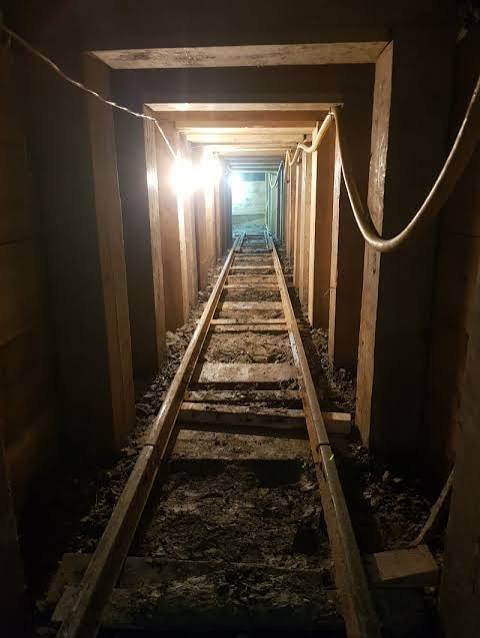

Timber-supported heading with a rail track

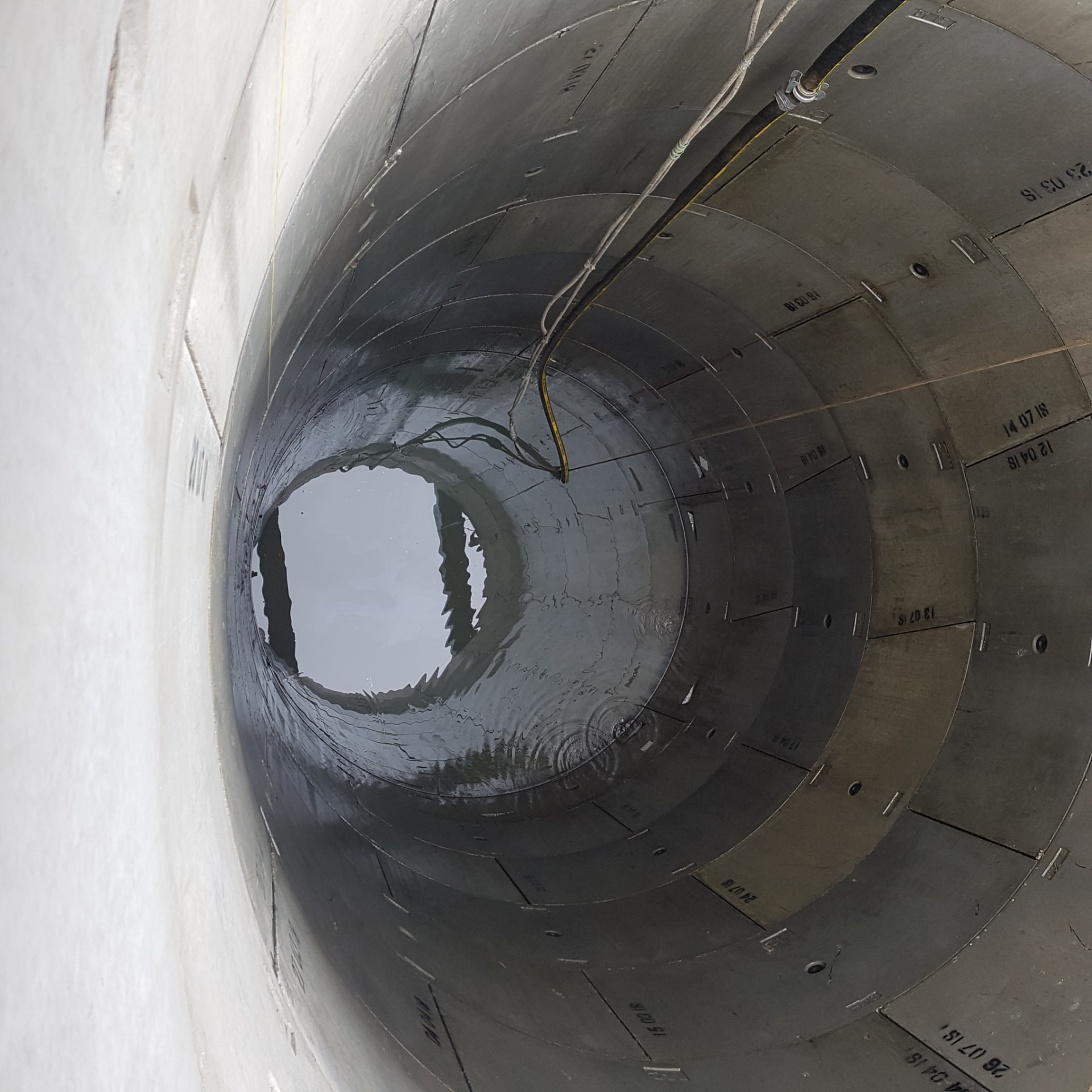

Circular concrete-lined shaft

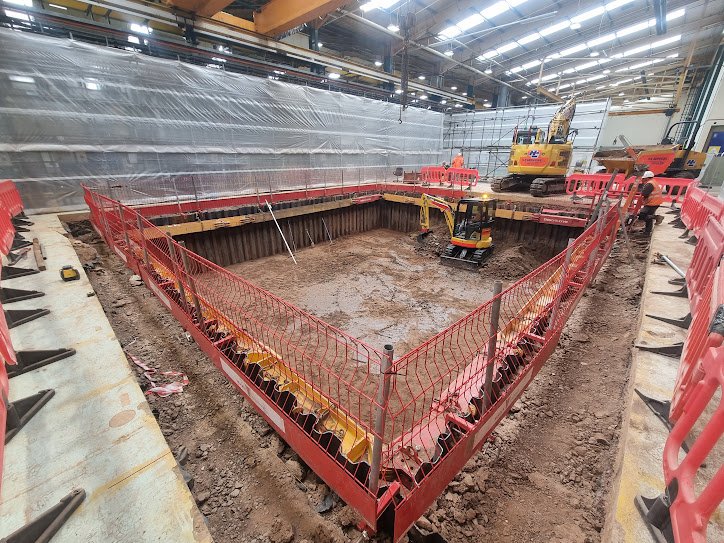

Sheet-supported excavation inside an industrial building

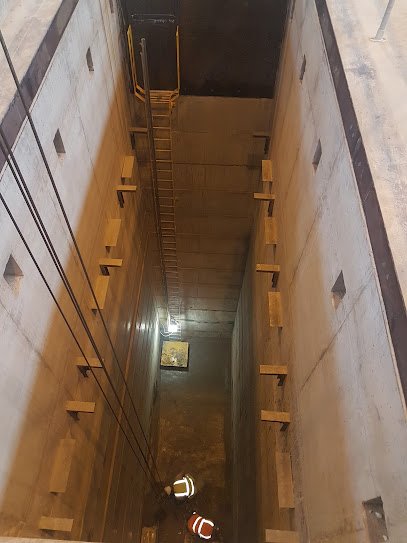

Deep rectangular shaft with concrete panel walls

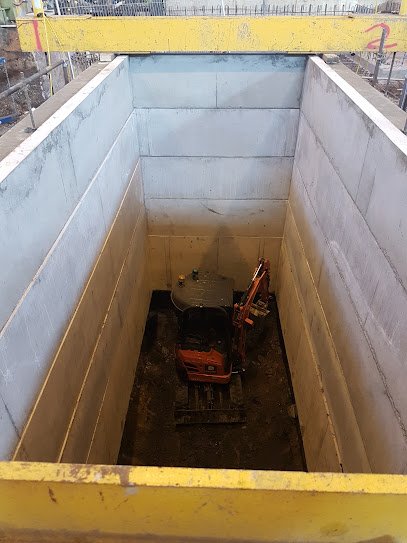

Excavation within a supported rectangular shaft
Shaft excavation using an excavator-mounted grab

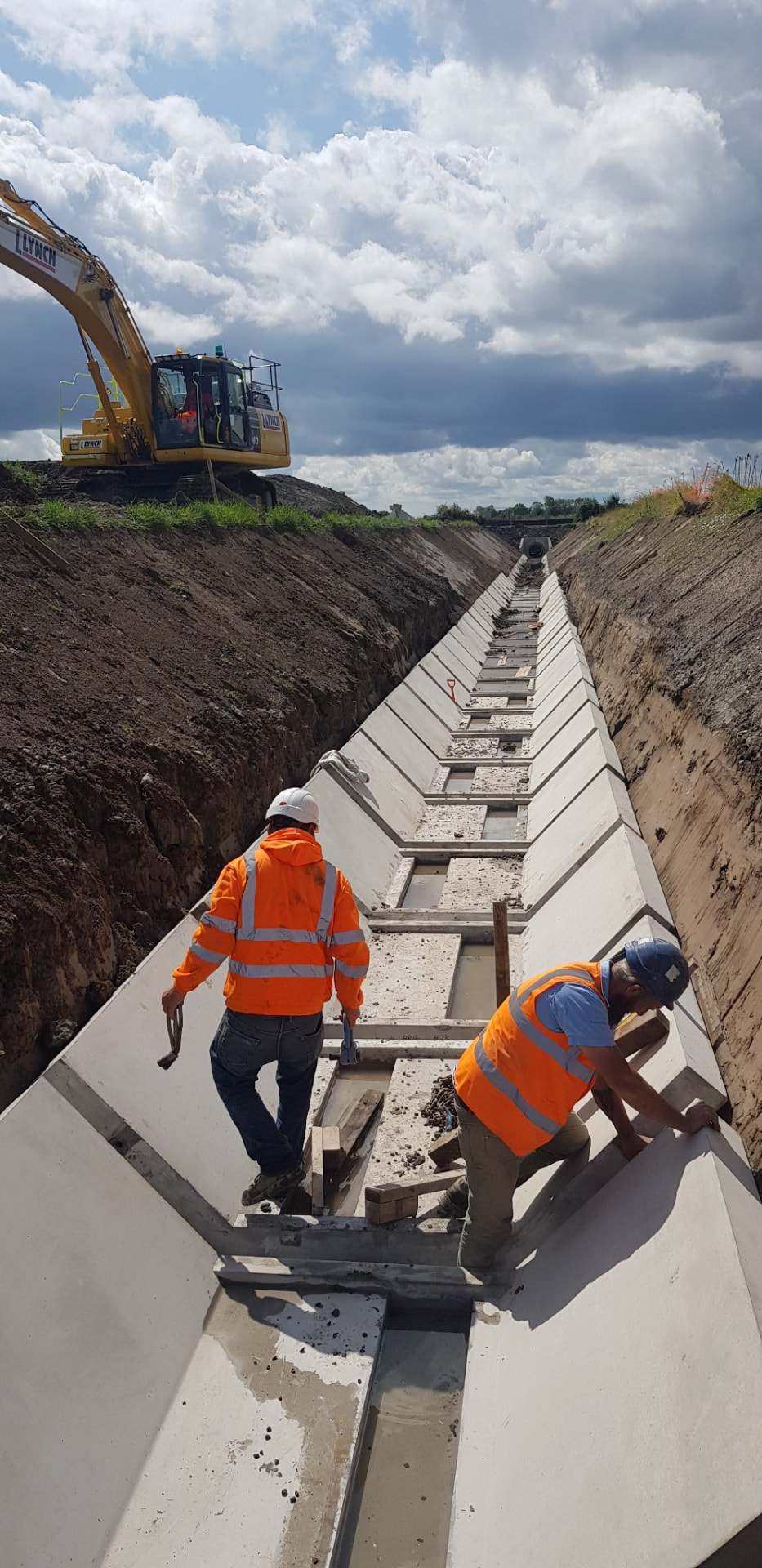

Workers installing precast concrete units
